温度・水流表示用OLEDパネル付き G1/4インラインセンサー

水流不足時(1.0LPM以下)には警告音と警告表示機能あり

SATA電源供給

接続口: G1/4 x2

サイズ(LxWxH): 70x38x38 MM

インストールマニュアル(PDF)

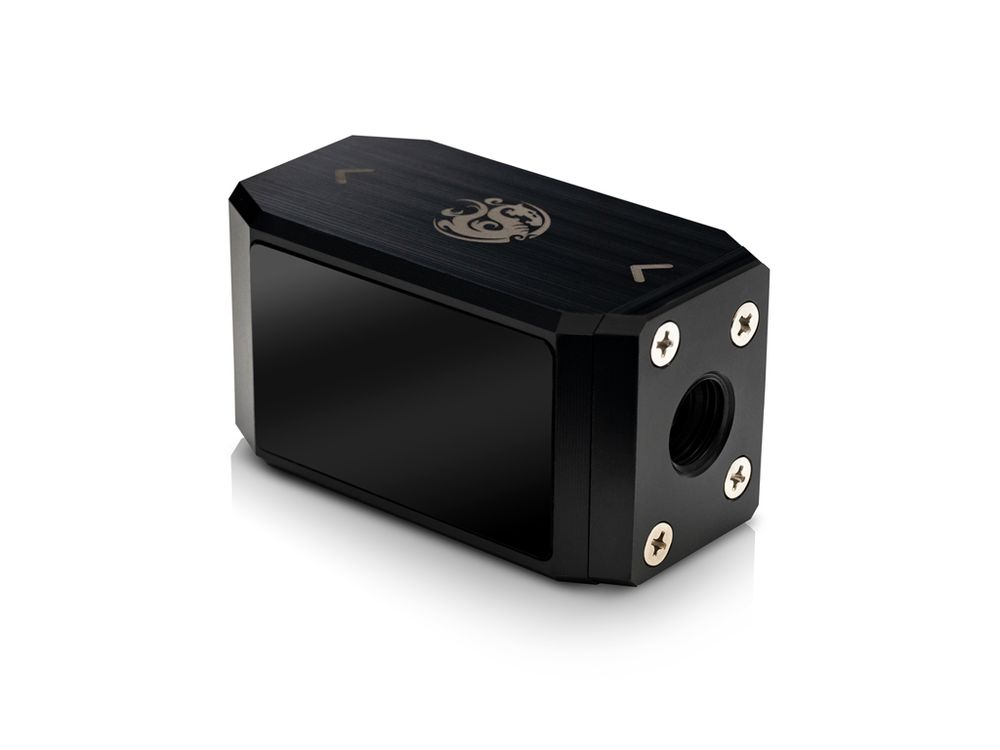

Bitspower Digit thermal sensor

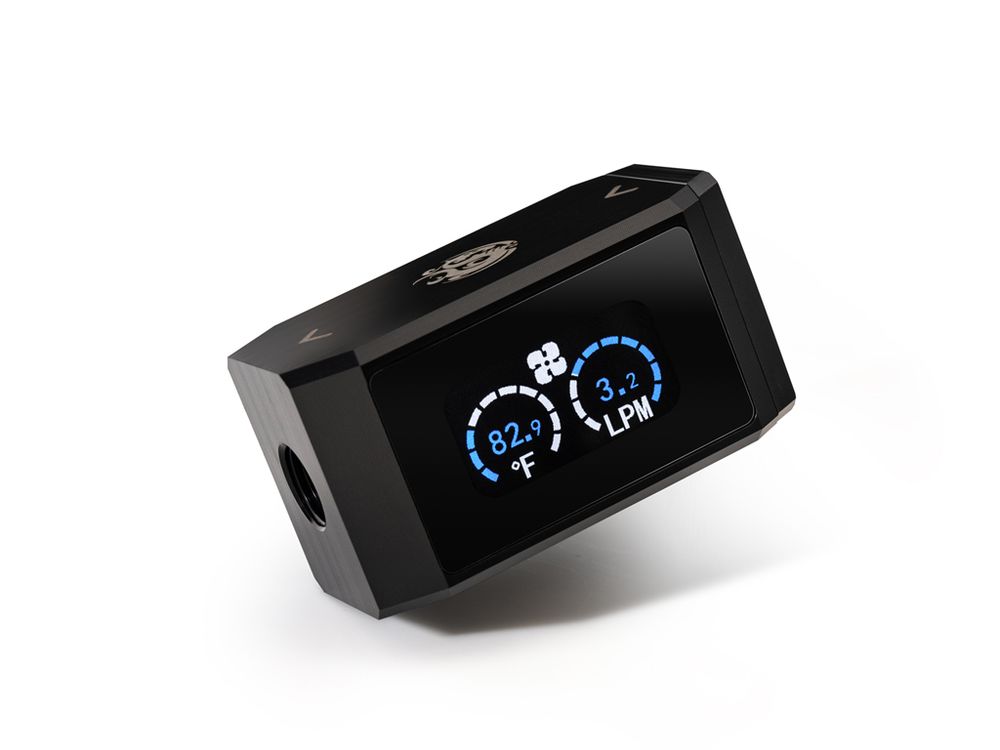

Bitspower Thermaflow Digital Sensor is extremely useful for water cooling systems. Simply install it within the systems, connect it to the SATA power, and the sensor will detect water flow and temperature, displaying the data on the OLED panel.

Concerning the flow sensing, apart from visual display, there is also an audible alarm. If the water flow is too low, a buzzing sound will be emitted, and a warning symbol will appear on the OLED panel, immediately alerting you to any issues in the water cooling systems.

As for the temperature sensing, it can be switched between Celsius and Fahrenheit, serving as a crucial tool for monitoring water cooling system temperature.

Thread : G1/4" x 2

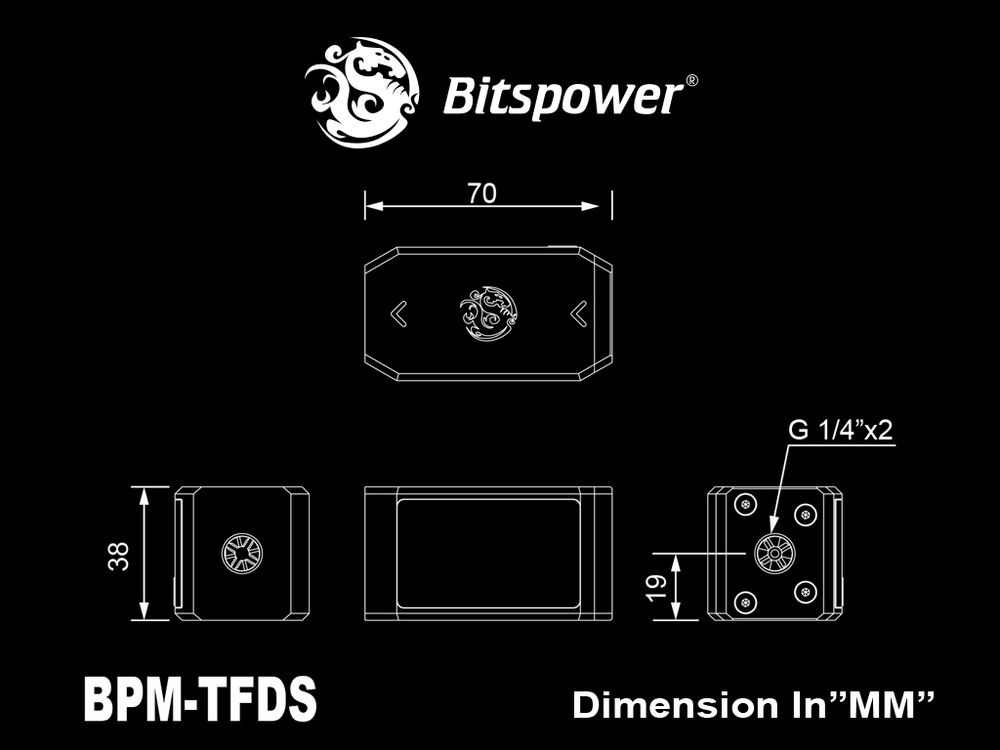

Dimension(LxWxH) : 70x38x38 MM

*** Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. ***

*** From 15th March 2018, all of our installation guides will be provided electronically via an easy-to-use QR code attached to the packaging. ***

*** Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply. ***

*** When using the leak tester on a water cooling loop, in order to avoid product damage due to excessive pressure, the input pressure should not exceed 0.5kg/cm2 (bar), and do not over 30 second. The leak tester must not be used when there is water in the loop or when the pump is running. If the product is damaged due to excessive pressure or incorrect use, Bitspower's product warranty will be null and void, and the cost of any damage to the hardware will be borne by the customer. ***
