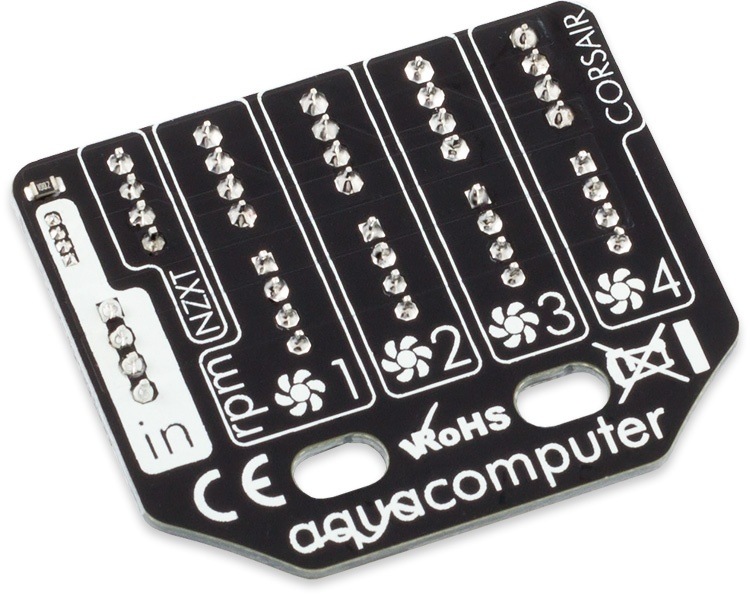

aquacomputer RGBpx Splitty4

4チャネル用ファンスプリッターとRGBpxコントローラ搭載基板
Product No.: 53267
商品コード : aqua53267
価格 : 税込1,628円(税抜1,480円)
数量    残りあと3個


かごに入れる すぐに購入
  • お気に入りリスト
  • 商品についての問い合わせ
■製品仕様 メーカーリンク

4チャネル用ファンスプリッターとRGBpxコントローラ搭載基板

Splitter for fan power supply and RGBpx illumination control.

This compact board combines two functions:
- Quadruple fan splitter to supply up to four fans from a single fan connector.
- Adapter for LED illumination systems of multiple fan types to the RGBpx system.

Both functions can be used independently, RGBpx Splitty4 can be used as a "simple" fan splitter or solely as an adapter for LED lighting systems.

Fan splitter:
The fan splitter function can be used either for 3 pin fans or for 4 pin PWM fans, provided that the connected fan controller supports each fan type (voltage controlled/PWM controlled). The speed signal of one connected fan (connector marking "rpm") is forwarded back to the fan controller.

Lighting system adapter:
RGBpx Splitty4 can be used to connect the following manufacturer specific lighting systems to the RGBpx system:

Manufacturer Corsair (four connector for a maximum of four fans,"LED hub" is not required):
LL120 RGB, LL140 RGB (16 LEDs per fan)
HD120 RGB, HD140 RGB (12 LEDs per fan)
ML120 PRO RGB-LED, ML140 PRO RGB-LED (4 LEDs per fan)

Manufacturer NZXT (one connector, further fans can each be connected to the preceding fan, up to a total of eight fans):
Aer RGB120, Aer RGB140 (8 LEDs per fan)

Installation:
The board can conveniently be attached to two adjacent fans and thereby enable a very clean cable arrangement without the usual tangle.

Guidelines and recommendations:
- Simultaneous connection of both lighting systems is not possible!

Scope of delivery:
RGBpx Splitty4 board
Mounting material
Fan connection cable, ca. 70 cm
RGBpx connection cable, ca. 50 cm

Compatible with:
D5 NEXT (41118)
QUADRO fan controller (53256)
