トップ > 水冷パーツ > ポンプ > リザーバ一体型ポンプ > EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal

EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal
EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal
EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal
拡大画像

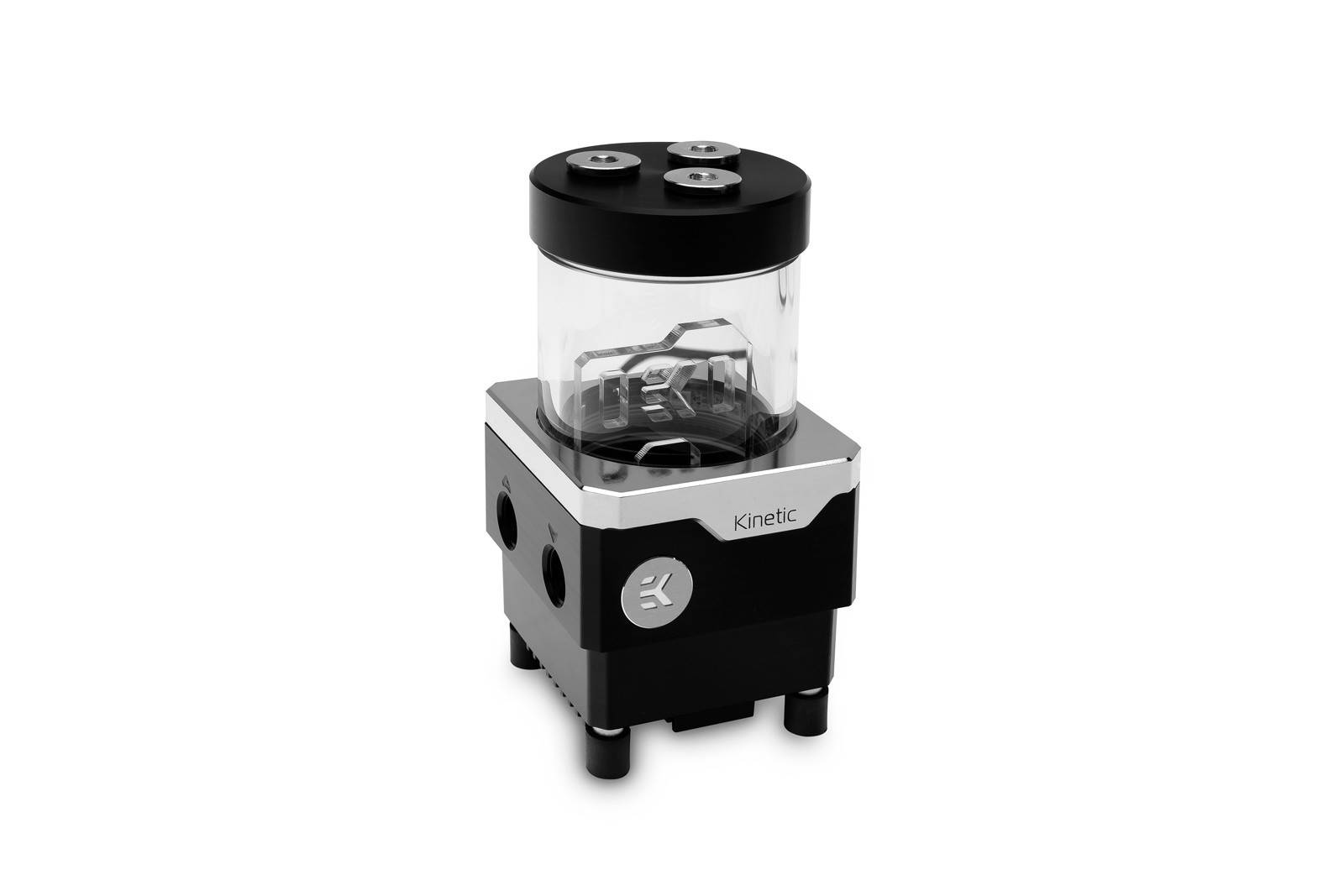

EK WaterBlocks EK-Quantum Kinetic TBE 120 DDC PWM D-RGB - Acetal

PWMコントロール対応DDCポンプ搭載 一体型リザーバ
5V 3pin アドレッサブルRGB(D-RGB)搭載
揚程:5.2m 流量:1000L/h
サイズ:高さ131mm 容量:115ml

商品コード : EK-TBE120DDC-DRGB-A
価格 : 税込41,052円(税抜37,320円)
数量    残りあと1個


かごに入れる すぐに購入
  • お気に入りリスト
  • 商品についての問い合わせ
■製品仕様  メーカーリンク

PWMコントロール対応DDCポンプ搭載 一体型リザーバ
5V 3pin アドレッサブルRGB(D-RGB)搭載
揚程:5.2m 流量:1000L/h
サイズ:高さ131mm 容量:115ml

オプションパーツでPCケースのファン固定穴を利用して取付が可能
(EK-UNIシリーズのブラケットの販売ページはこちら、新EK-Loopシリーズのブラケットの販売ページはこちら)

接続口:G1/4

電源供給はペリフェラル4ピンにて行います。
4ピンファンコネクタ(PWM)をマザーボード等に接続すると回転数を制御出来ます。

ご注意事項:
・RGBケーブルは、必ず3pin 5V デジタル(アドレッサブル)RGB コネクタに接続して下さい
 12V 4pin RGBコネクタに接続すると故障しますのでご注意下さい
・空回し禁止
 必ず水が流れる状態で稼働させてください。

インストレーションマニュアル(PDF)


Details



EK-Quantum Kinetic TBE 120 DDC PWM D-RGB combo unit is a pump-reservoir assembly that is based upon a market-proven DDC pump that brings the ultimate power in a small form factor. The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine DDC 3.2 pump that is a favorite among the small-form-factor PC enthusiast community! The reservoir is equipped with a total of six G1/4“ ports so that users can choose the most optimal setup for their liquid cooling loops. The DDC motor is cooled by the integrated heatsink on the bottom.


The CNC-machined black POM acetal top features three G1/4" ports. One of the ports can be used with the included nickel-plated brass internal tube, which helps prevent the splashing of the coolant inside the reservoir if the top is to be used as an inlet. This reduces the chances of air being sucked in by the pump and foaming of the coolant as well. This tube cannot be used with anti-vortex insert due to size constraints.  Any of the three top ports can also use used for filling the system or adding additional accessories (thermal probes, LEDs, etc.)


EK Quantum Kinetic TBE DDC pump reservoir combo


Another three industry-standard G1/4" ports are available in the bottom combo housing which is also made of CNC machined black POM acetal. Aside from the in and out ports, it features a side port usable as either an optional inlet or a drain port. Mounting is done through 4 pillars on the bottom of the pump-reservoir combo unit. The addressable LEDs are placed in a ring directed toward the coolant. Any unwanted hot-spots of the D-RGB LED of the combo unit is covered by a CNC machined aluminum piece.


The 60mm diameter tube is made of high-quality cast acrylic material, while the reservoir bottom/pump top is CNC machined black POM acetal. The sealing is performed by a quality EPDM o-ring.


The integrated addressable D-RGB is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D-RGB header.


This reservoir can be easily upgraded with longer acrylic tubes used by EK-RES X3 series reservoirs.


Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: ~115mL
- Overall unit height: 120mm
- Mounting hole pattern: 50x50mm
- D-RGB connector standard 3-pin (5+, Digital, Blocked, Ground)


Pump electrical and mechanical properties:
- Dimensions (W x D x H): 90 x 62 x 38 mm
- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12 V DC
- Power consumption: 18 W
- Maximum head pressure: up to 5.2m
- Maximum flow rate: up to 1000 L/h
- Maximum liquid temperature: 60 °C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector:  4-Pin Molex- and 4-Pin PWM FAN connector


Enclosed:
- EK-Quantum Kinetic TBE 120 DDC PWM D-RGB
- Mounting mechanism
- Installation manual


Made in Slovenia - EU!
Pump motor made in Hungary - EU!


PLEASE NOTE:

  • ・The DDC pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
  • ・This product should NOT be installed with any aluminum Fluid Gaming parts!

[保証に関して]
初期不良対応のみとさせていただきます。
期間はお客様の手元に到着した日より10日間となります。
お客様のご都合による商品のご返品は受付ておりませんのでご注意下さい。
