フォームファクター

 E-ATX

 サイズ（W×D）

 304.8W x 330.2D mm

 CPU

 Intel Xeon 600 processors for workstations

 Single processor, TDP up to 350W

 [Note] Please select Intel Xeon 690/670/650 processors to enable all functions.

 ソケット

 1 x LGA 4710-2

 Socket E2

 チップセット

 Intel W890

 メモリー

 8 x DIMM slots [1]

 Support DDR5 RDIMM/MRDIMM

 8-channel memory per processor

 RDIMM: Up to 6400 MT/s

 MRDIMM: Up to 8000 MT/s [2]

 [1] Only 4 x DIMMs are supported with Intel Xeon 630 processors.

 [2] MRDIMMs are supported only on select SKUs.

 LAN

 2 x 10Gb/s LAN (1 x Intel X710-AT2)

 - Support NCSI function

 1 x 10/100/1000 Mbps Management LAN

 Video

 Integrated in ASPEED AST2600

 - 1 x VGA port

 Audio

 Realtek ALC897 HD Audio Codec

 Supports 2/4/5.1/7.1 channel configurations

 3 x Audio Jacks (Audio in/Audio out/Mic)

 Storage Interface

 MCIO: 2 x MCIO 8i for 4 x Gen5 NVMe, from CPU [1]

 SlimSAS: 1 x SlimSAS 8i for 2 x Gen4 NVMe, from PCH, 2 x SlimSAS 4i for 8 x SATA, from PCH

 M.2: 4 x M.2 (2280/22110), PCIe Gen5 x4, from CPU

 [1] Require Intel Xeon 690/670/650 processors.

 RAID

 Intel SATA RAID 0/1/10/5

 Onboard VROC key header

 PCIe Expansion Slots

 Slot_7: PCIe x16 (Gen5 x16), from CPU

 Slot_6: PCIe x16 (Gen5 x16), from CPU [1]

 Slot_5: PCIe x16 (Gen5 x16), from CPU

 Slot_3: PCIe x16 (Gen5 x16), from CPU

 Slot_2: PCIe x16 (Gen5 x16), from CPU [1]

 Slot_1: PCIe x16 (Gen5 x16), from CPU

 2 x MCIO 8i (Gen5 x8), from CPU

 [1] Slot_2/6 require Intel Xeon 690/670/650 processors.

 Internal I/O

 1 x 24-pin ATX main power connector

 2 x 8-pin ATX 12V power connectors

 1 x 4-pin power connector (for PCIe slots)

 1 x CPU fan header

 6 x System fan headers

 1 x Front audio header

 1 x USB 3.2 Gen2x2 header (Type-E)

 1 x USB 3.2 Gen1 x2 header

 4 x M.2 slots

 2 x MCIO 8i connectors

 1 x SlimSAS 8i connector

 2 x SlimSAS 4i connectors

 1 x VROC connector

 1 x Front panel header

 1 x Backplane board header

 1 x PMBus header

 1 x IPMB header

 1 x TPM header

 Rear I/O

 1 x USB 3.2 Gen2x2 port (Type-C)

 3 x USB 3.2 Gen2x1 ports (Type-A)

 1 x VGA port

 1 x Serial port

 2 x RJ45 ports

 1 x MLAN port

 3 x Audio jacks

 1 x ID button with LED

 Security Modules

 1 x TPM header with SPI interface

 - Optional TPM2.0 kit: CTM012

 OS Supported

 Please refer to OS compatibility table in support page

 Board Management

 ASPEED AST2600 Baseboard Management Controller

 GIGABYTE Management Console web interface

 PSU Connectors

 1 x 24-pin ATX main power connector

 2 x 8-pin ATX 12V power connectors

 1 x 4-pin power connector (for PCIe slots)

 内容物

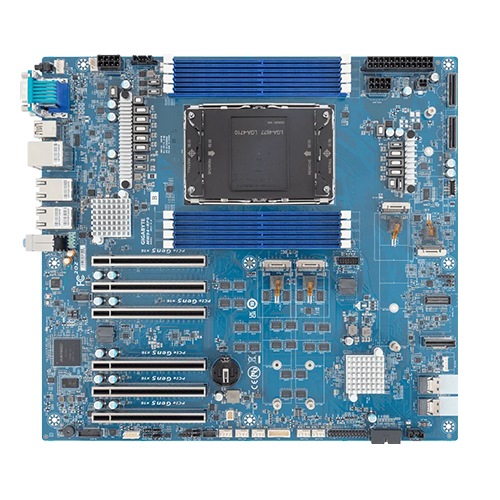

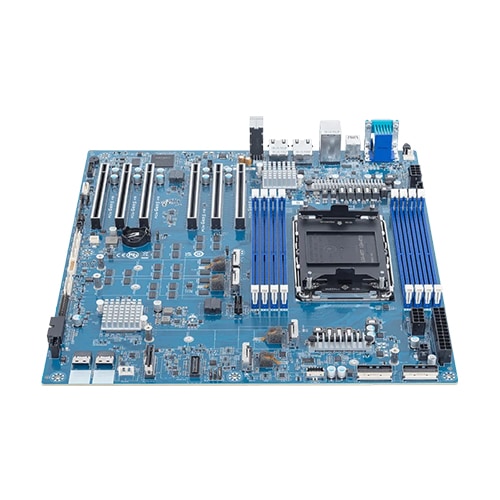

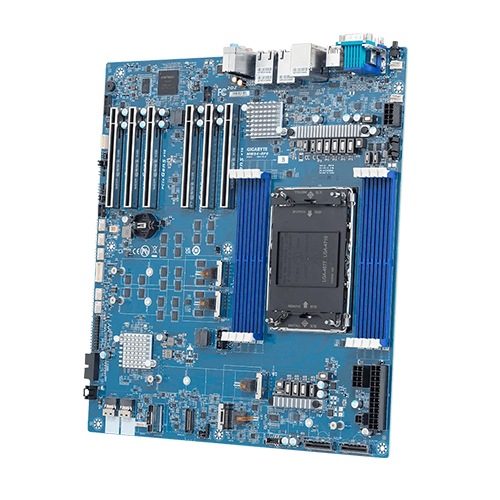

 1 x MW94-RP0

 1 x I/O shield

 2 x Carriers

 4 x M.2 heatsinks

 1 x SlimSAS 4i to 4 x SATA cable (600mm)
