製品名

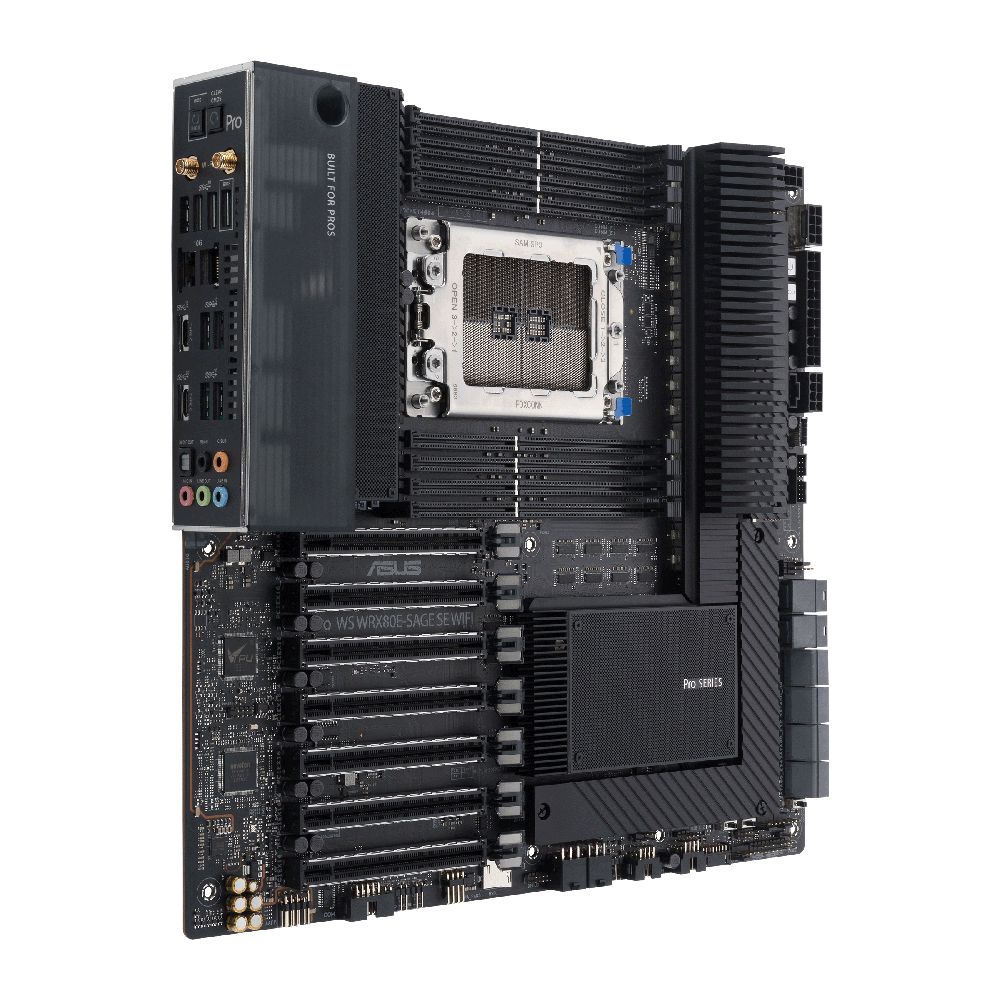

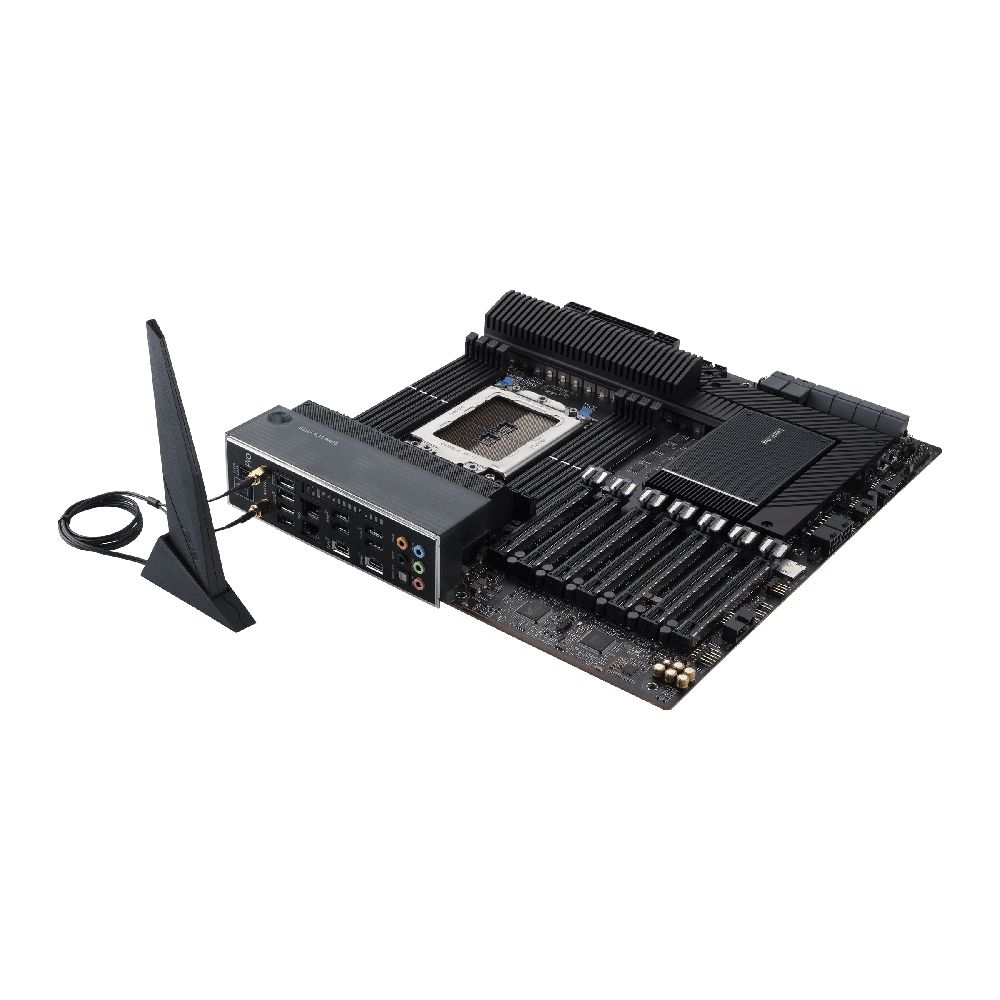

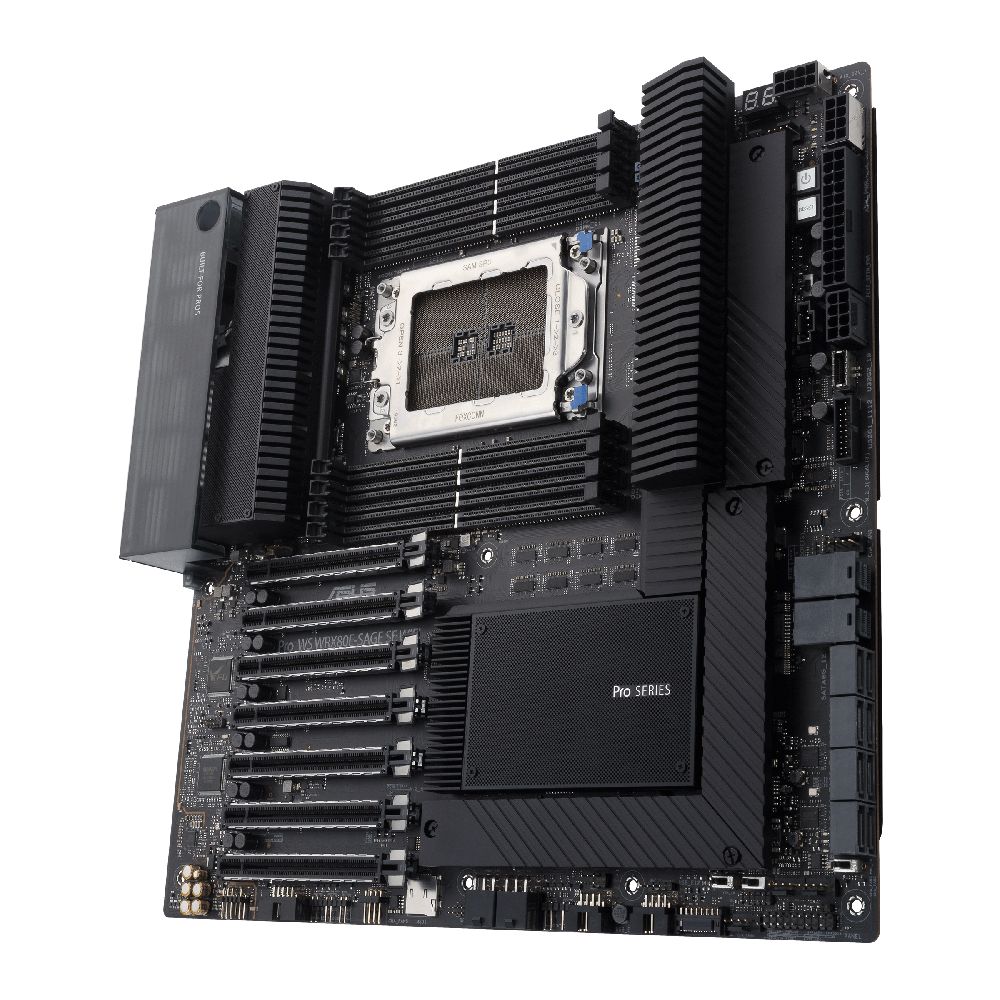

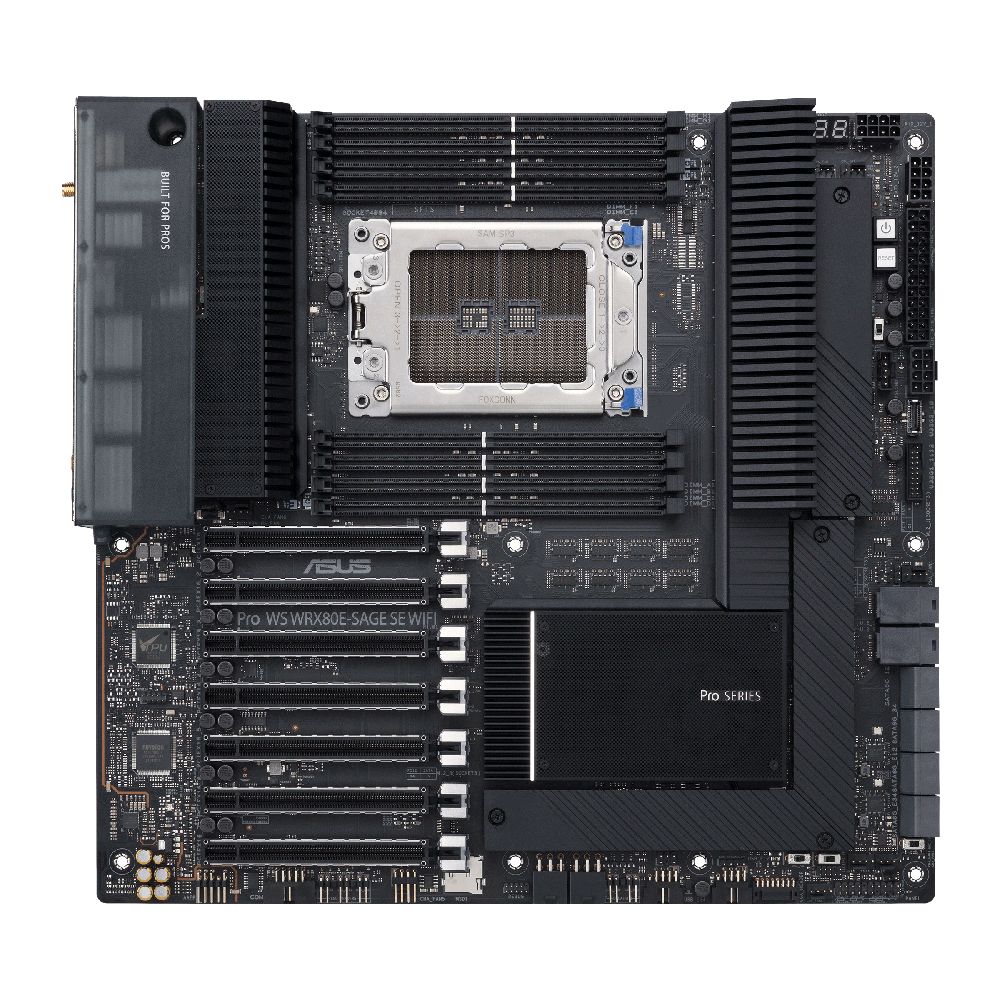

 Pro WS WRX80E-SAGE SE WIFI

 フォームファクタ

 EATX(EEB) 規格: 12.2-in x 13-in, 30.98 cm x 33.02cm

 チップセット

 AMD WRX80

 CPU

 - AMD Ryzen Threadripper PRO 5000WX/3000WX シリーズ 対応
 - AMD Socket sWRX8
 対応CPUはメーカーサイトにてご確認下さい

 メモリー

 - 8チャンネル DDR4
 - 8 x DDR4 DIMM スロット

- 最大2048GB, DDR4 3200MHz
 - ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, 3DS R-DIMM and LR-DIMM
 詳細はメーカーサイトにてご確認下さい。

 拡張スロット

 AMD Ryzen™ Threadripper™ PRO Series Processors

7 x PCIe 4.0/3.0 x16 slot(s)*

* Support PCIe bandwidth bifurcation for RAID on CPU function.

 マルチGPU

 NVIDIA 4-Way/3-Way/2-Way SLI® Technology 対応

 ストレージ

Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports

AMD Ryzen™ Threadripper™ PRO Series Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*

AMD WRX80 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*

4 x SATA 6Gb/s ports

ASMedia ASM1061 Controller

4 x SATA 6Gb/s ports

Supports NVMe RAID configurations via M.2 storages

*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.

 有線LAN

  1 x Intel® dual 10Gb Ethernet

 無線LAN

 Wi-Fi 6

 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

 Supports 2.4/5GHz frequency band

 Bluetooth

 Bluetooth® v5.2

 オーディオ

 Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC

 USB

Rear USB (Total 10 ports)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

 コネクタ

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

6 x 4-pin Chassis Fan header(s)

1 x VRM heatsink Fan header

1 x Chipset Fan header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

2 x 6-pin PCIe Graphics Card connector

1 x 8-pin PCIe Power connector

Storage related

3 x M.2 slots (Key M)

8 x SATA 6Gb/s ports

2 x U.2 slots

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

BMC Related

1 x BMC switch

1 x IPMI switch

1 x Messange LED header

1 x Micro SD card socket

2 x LAN LED header(s)

1 x Location LED header

1 x Location button header

1 x PSU_SMB header

1 x SMART_PSU switch

1 x VGA switch

1 x VGA header

1 x VPP_I2C header

Miscellaneous

1 x COM Port header

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x RTC Battery header

1 x Thermal Sensor header

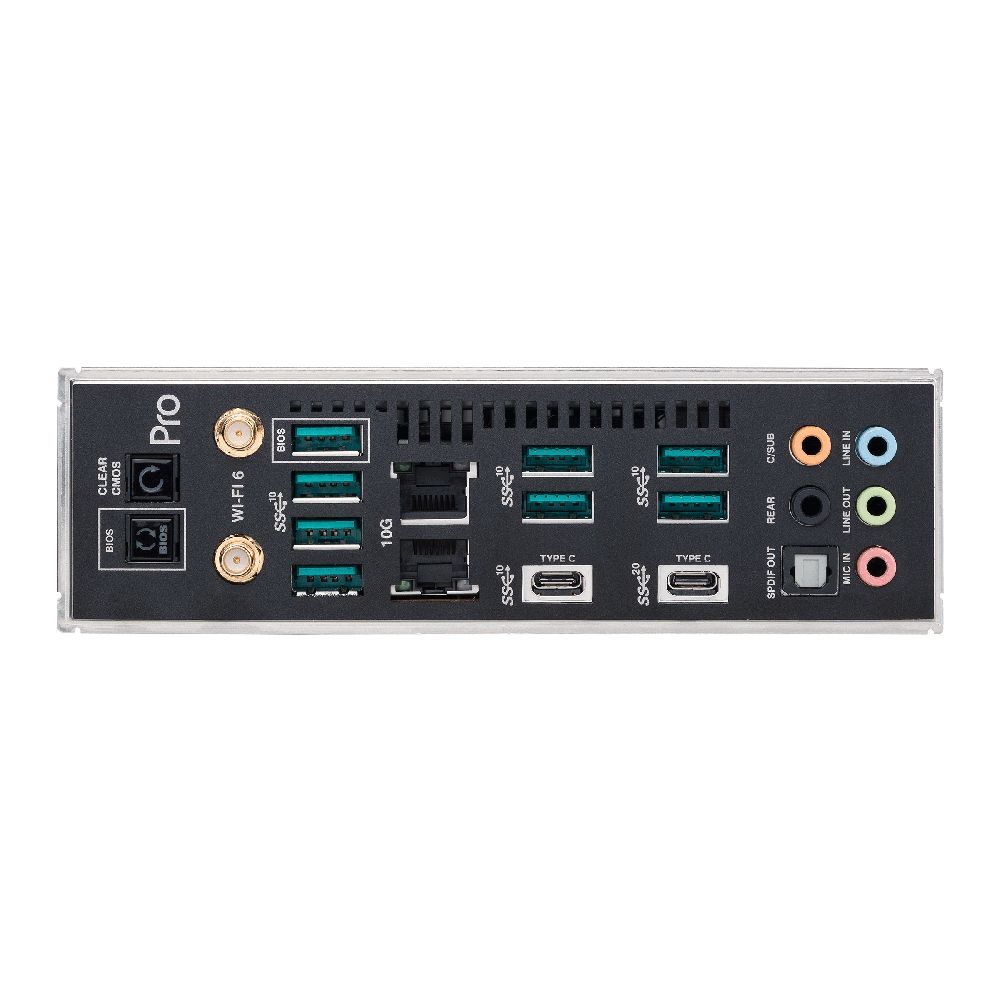

 リアI/O

 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)

 1 x Wi-Fi Module

 2 x Intel® X550-AT2 dual 10Gb Ethernet ports

 5 x Audio jacks

 1 x Optical S/PDIF out port

 1 x BIOS FlashBack™ button

 1 x Clear CMOS button

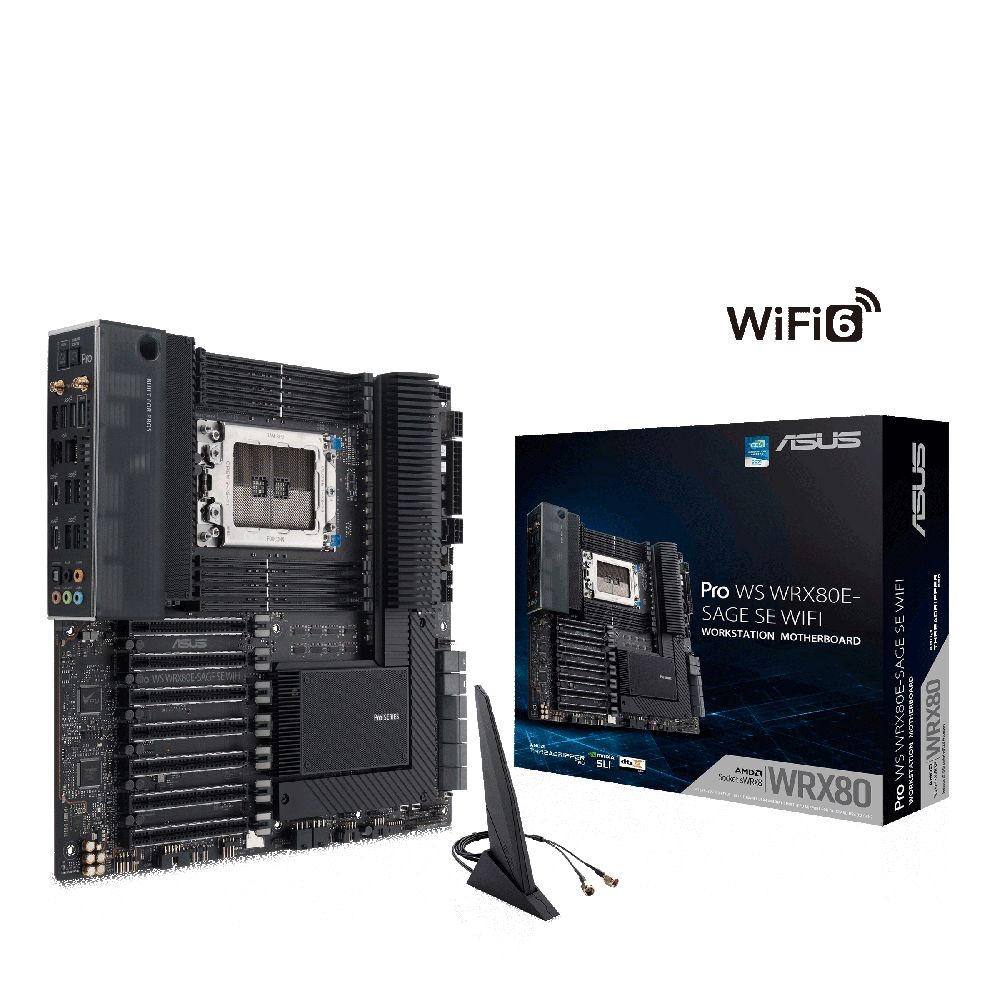

 付属品

Cables

6 x SATA 6Gb/s cables

1 x VGA cable

Miscellaneous

1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

1 x Hyper M.2 X16 Gen 4 Card

4 x M.2 Rubber Package(s)

6 x M.2 SSD screw package(s)

1 x Q-connector

Installation Media

1 x Support DVD

Documentation

1 x User manual

 対応OS

 Windows® 10 64bit

 保証

 特価品につき、初期不良対応10日間のみ
 ※オーバークロック行為に伴う故障等は保証対象外となります。ご注意ください。
