製品名

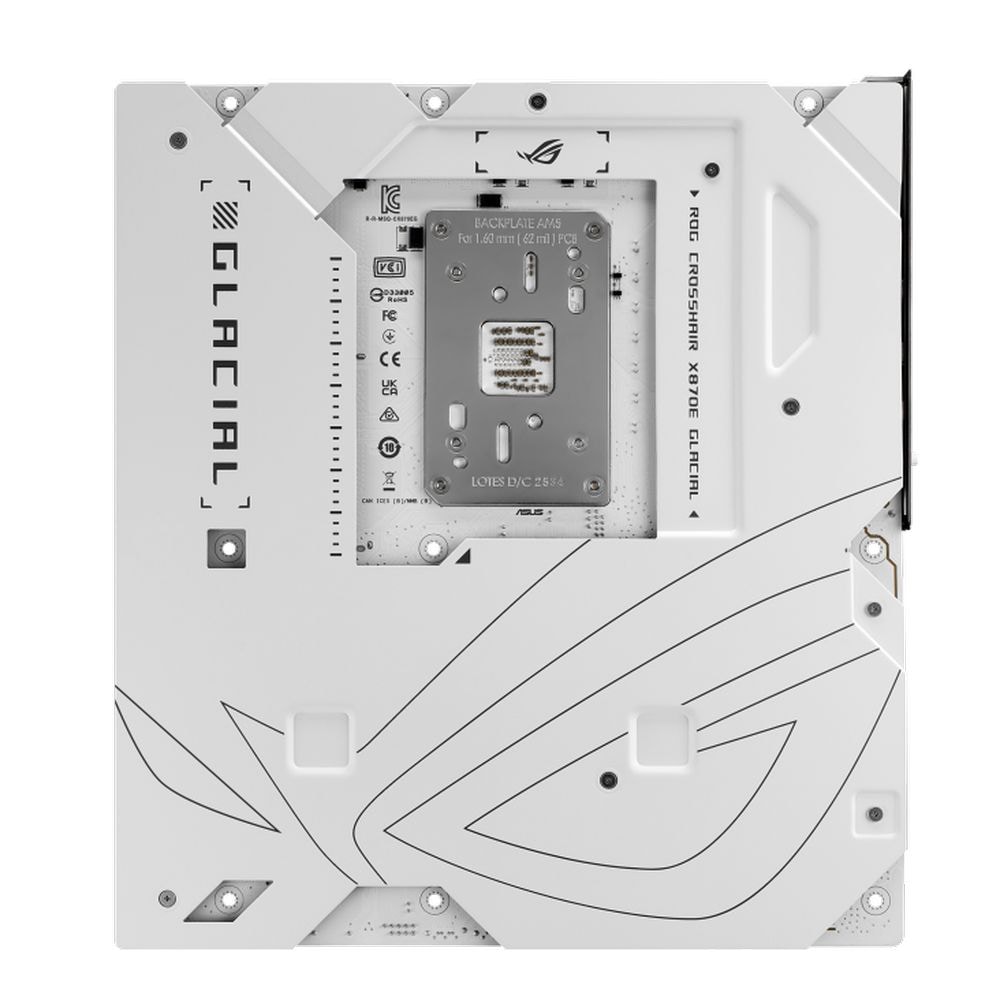

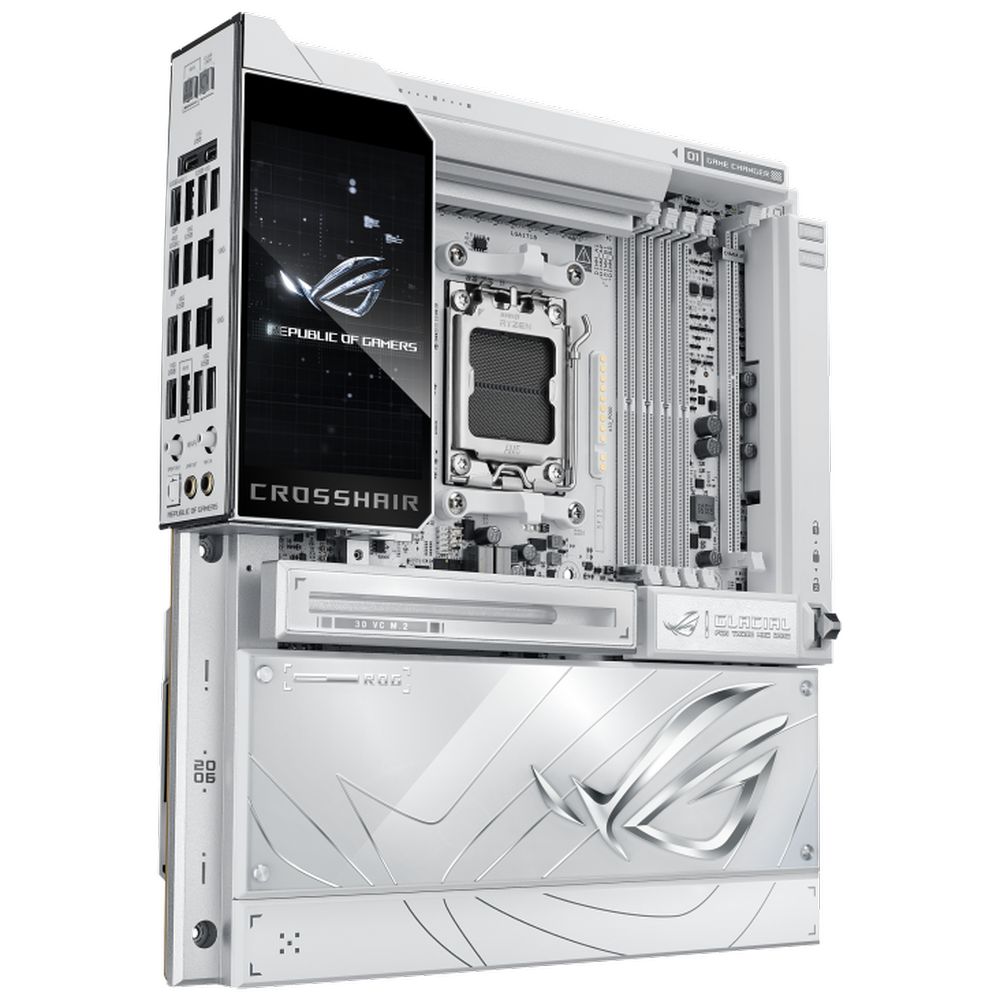

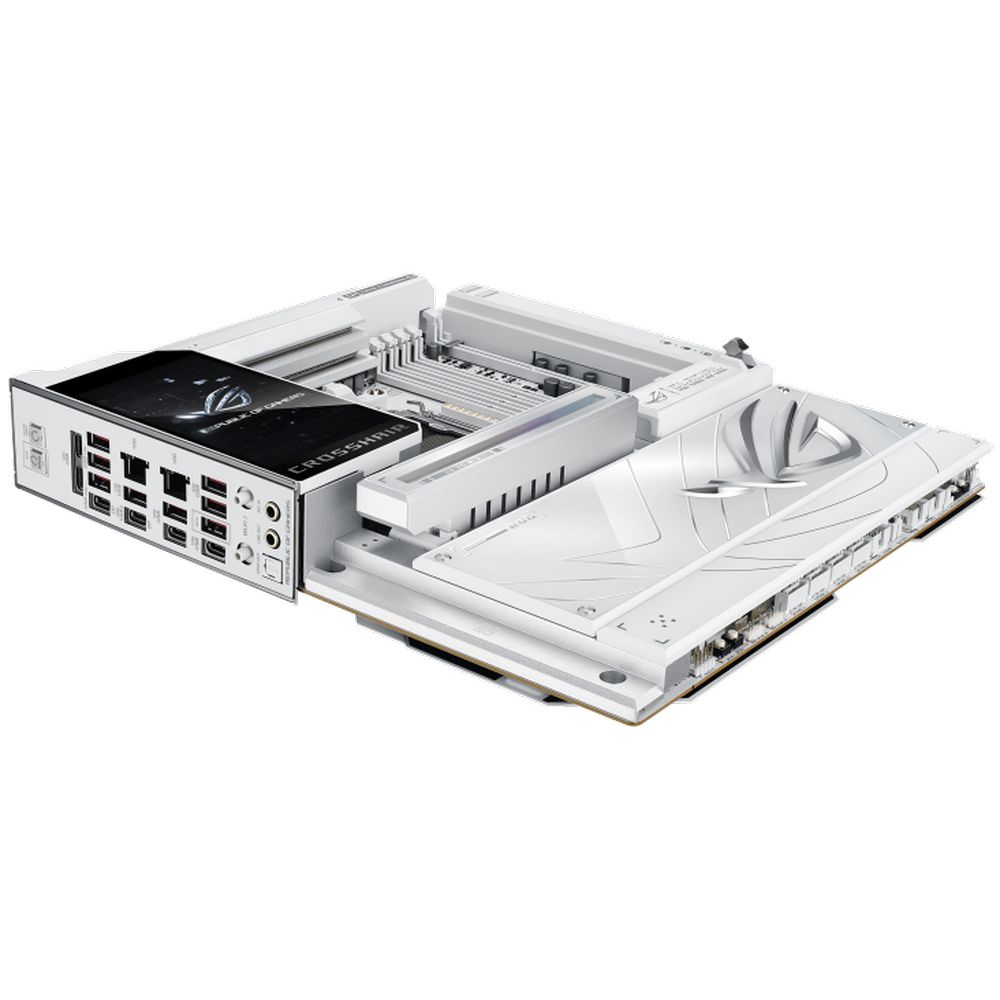

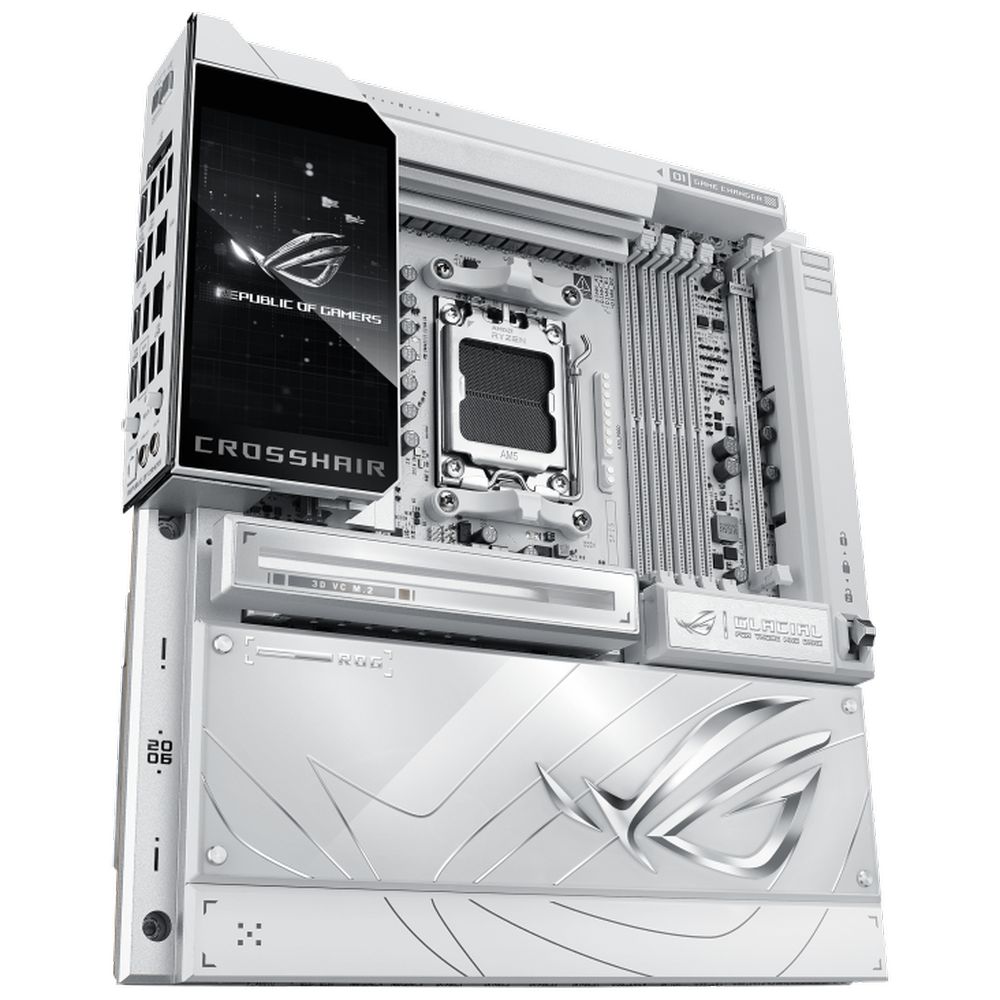

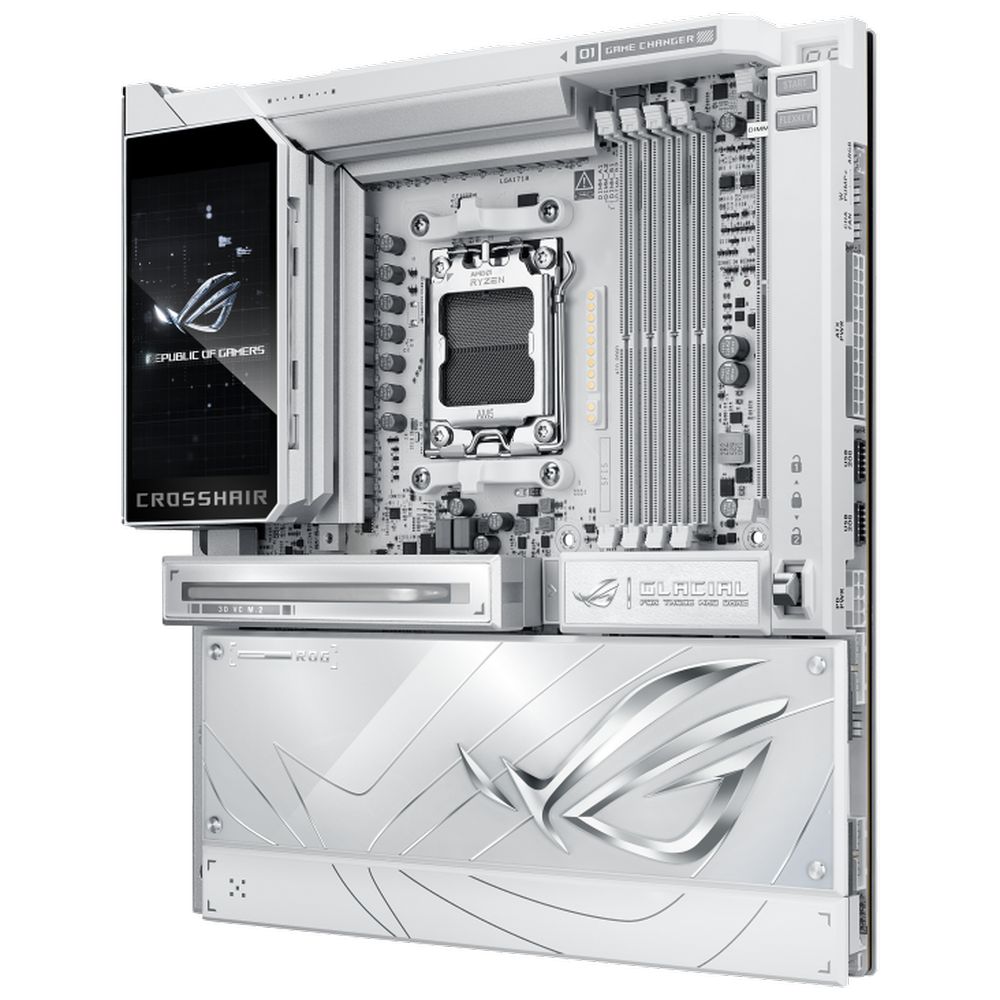

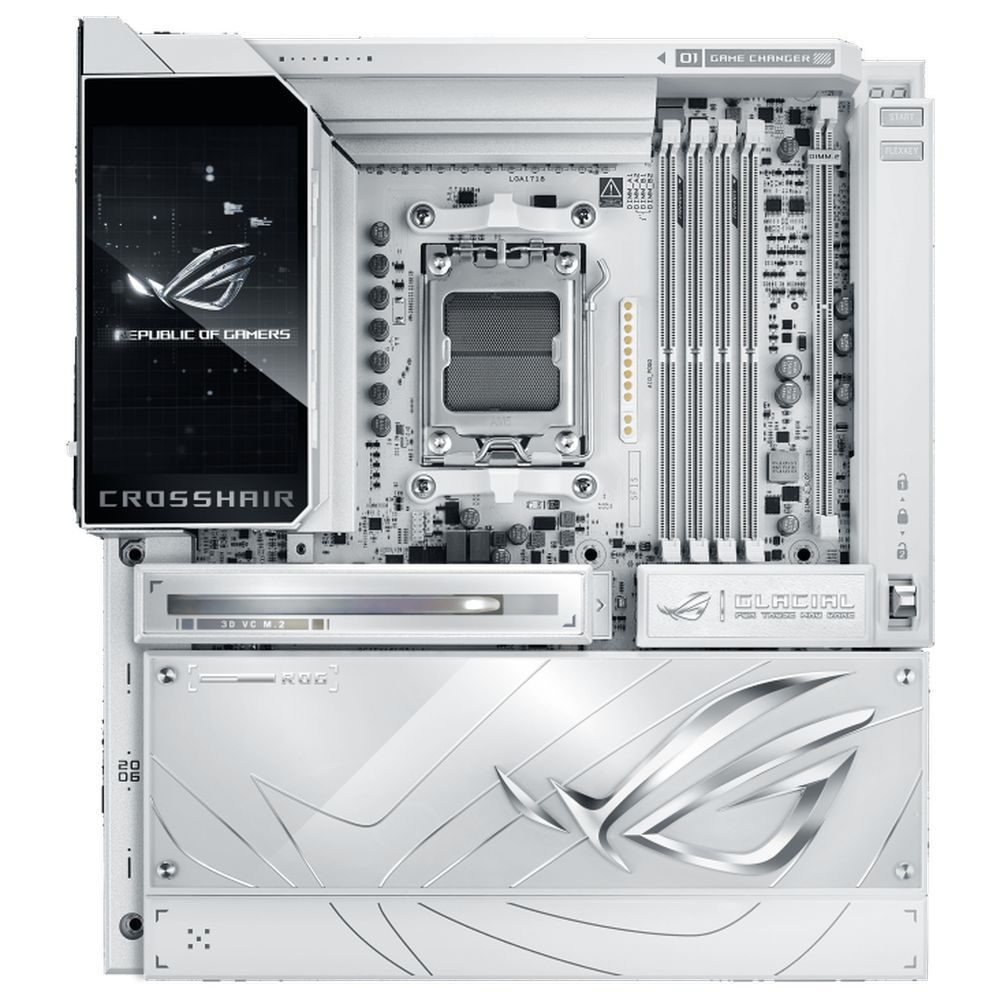

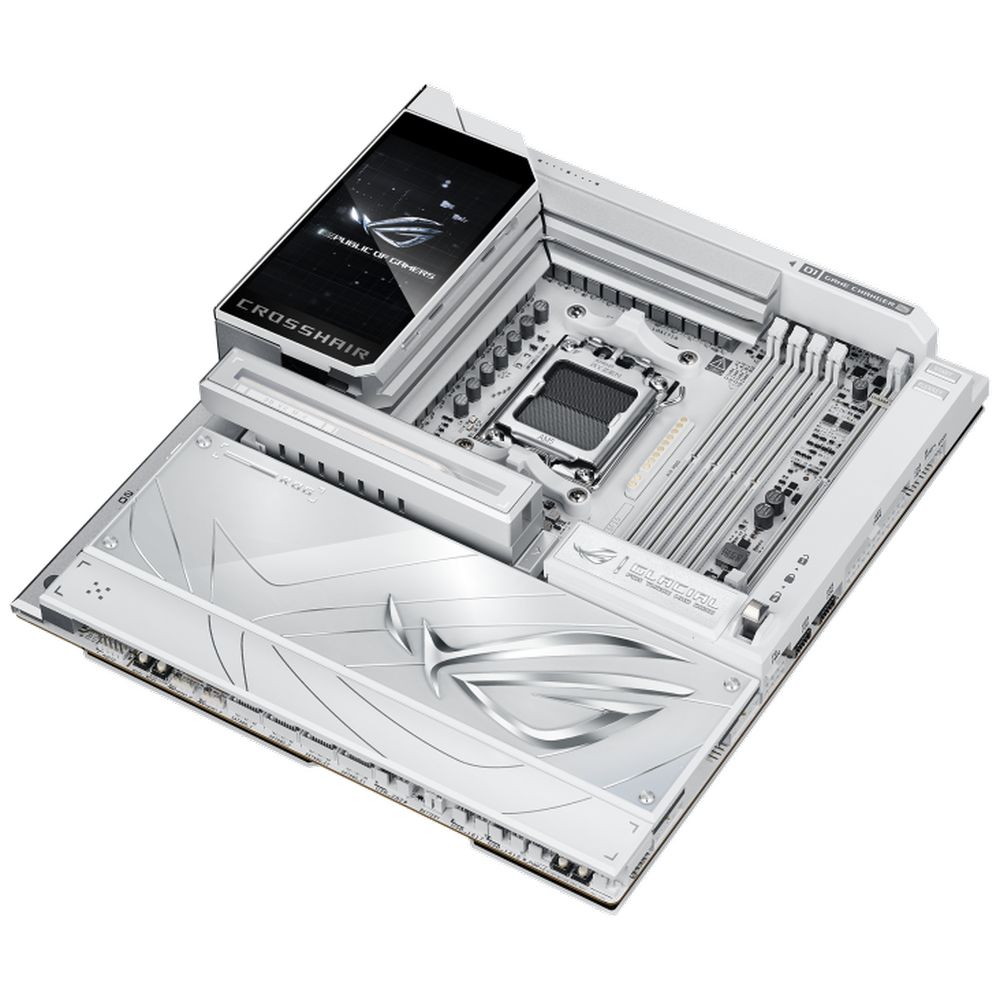

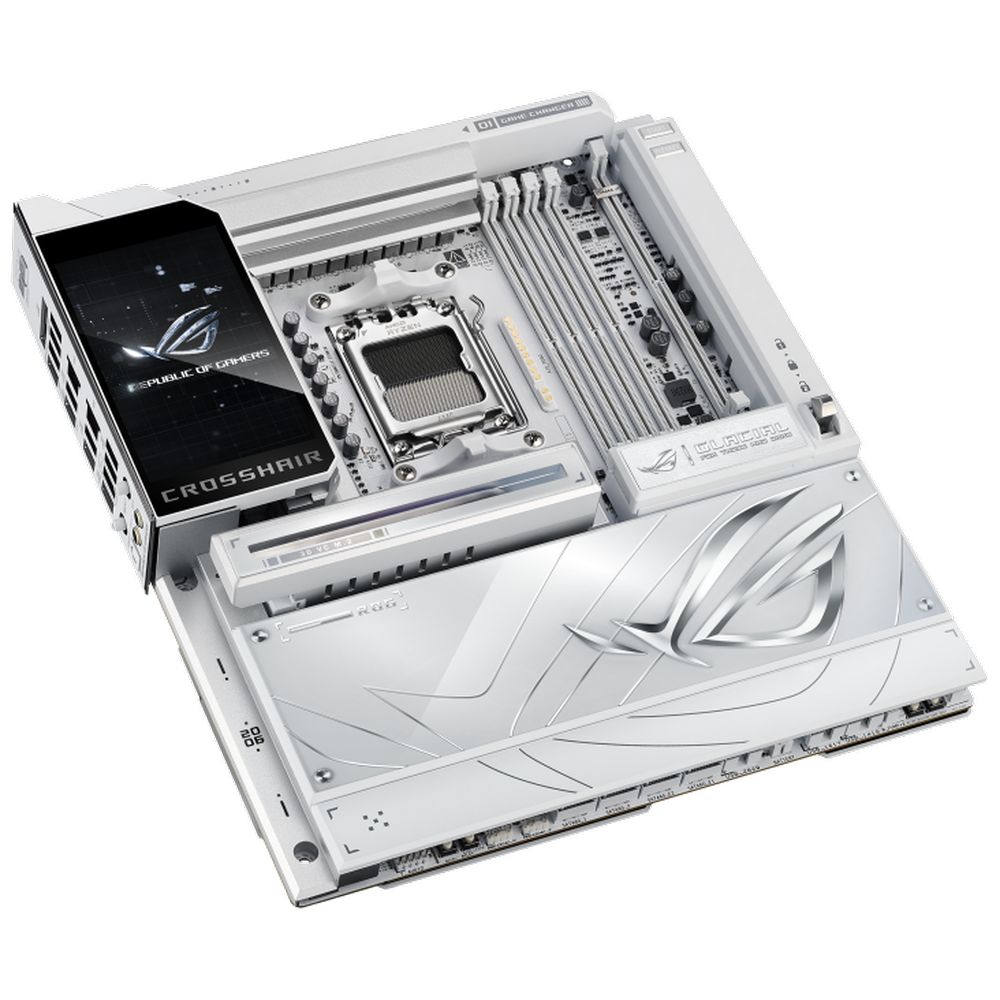

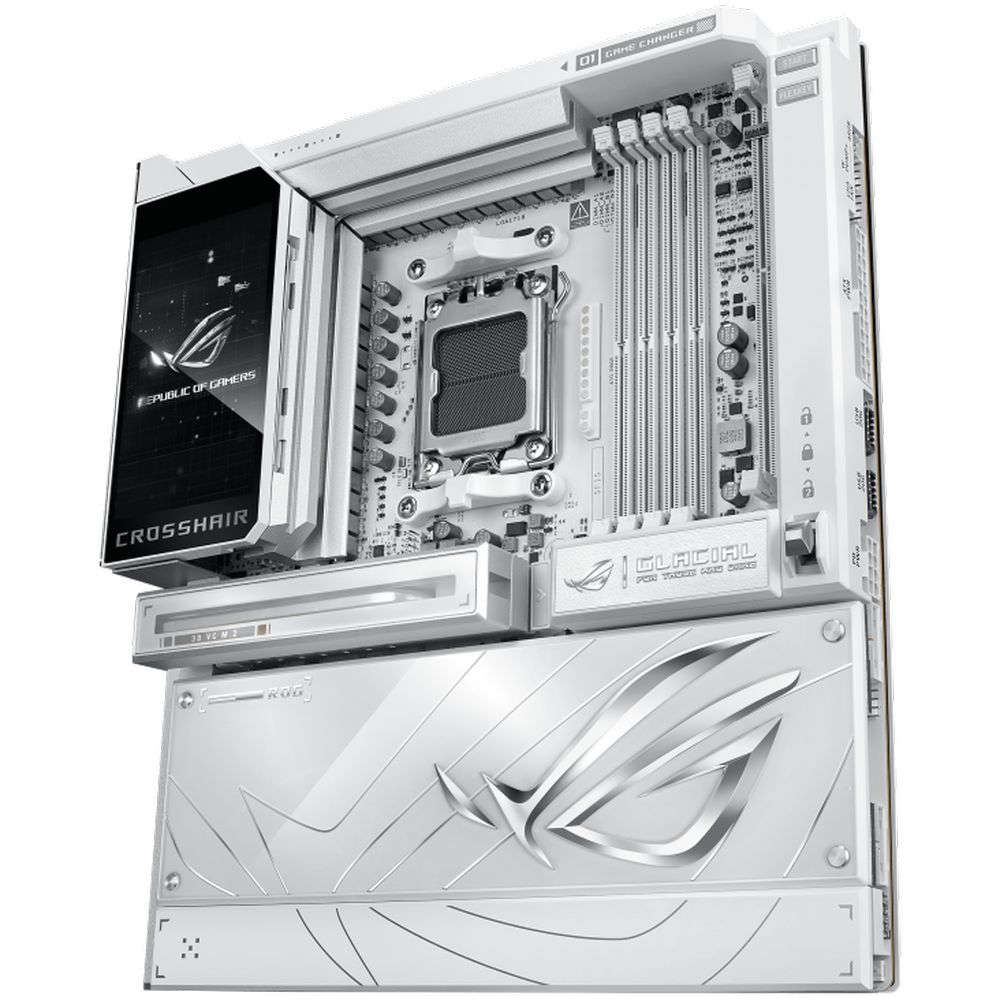

 ROG CROSSHAIR X870E GLACIAL

 フォームファクタ

 E-ATX Form Factor
 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

 チップセット

 AMD X870E

 対応CPUソケット

 AM5

 CPU

 AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
 ※対応CPUはメーカーサイトにてご確認下さい。

 メモリ

 4 DIMM（最大256GB）
 DDR5 8600+(OC) [Ryzen 9000シリーズ] / 9600+(OC) [Ryzen 8000シリーズ] / 8000+(OC) [Ryzen 7000シリーズ] 対応

 ECC & Non-ECC, Un-buffered Memory
 デュアルチャンネルをサポート
 AMD EXTended Profiles for Overclocking (EXPO™)をサポート
 NitroPath DRAM Technology
 ASUS Enhanced Memory Profile (AEMP)

 その他詳細や注意事項はメーカーサイトにてご確認下さい
 メモリ動作検証リストはメーカーサイトにてご確認下さい

 拡張スロット

 AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
 2 x PCIe 5.0 x16 slots with PCIe Q-Release Switch (supports x16 or x8/x8 or x8/x4/x4 or x4/x4/x4/x4 modes)**
 AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
 2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
 AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
 2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
 * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

 * Specifications vary by CPU types.

 ** When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported

 ※帯域使用の制限等の詳細はメーカーホームページにてご確認下さい

 ストレージ

Supports 7 x M.2 slots and 4 x SATA 6Gb/s ports
 AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**

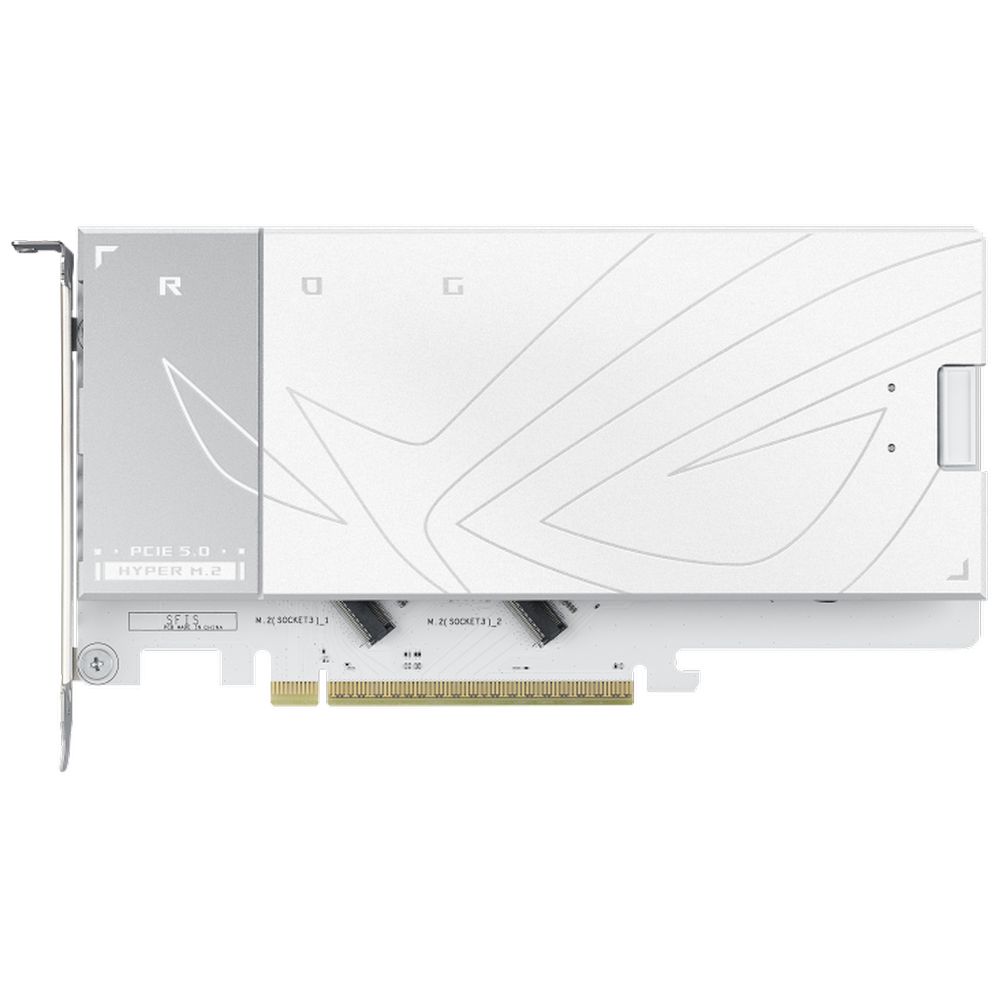

 Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)

 Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
 AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**

 AMD Ryzen™ 8500 & 8300 Series Desktop Processors*

 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

 M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
 AMD X870E Chipset
 M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

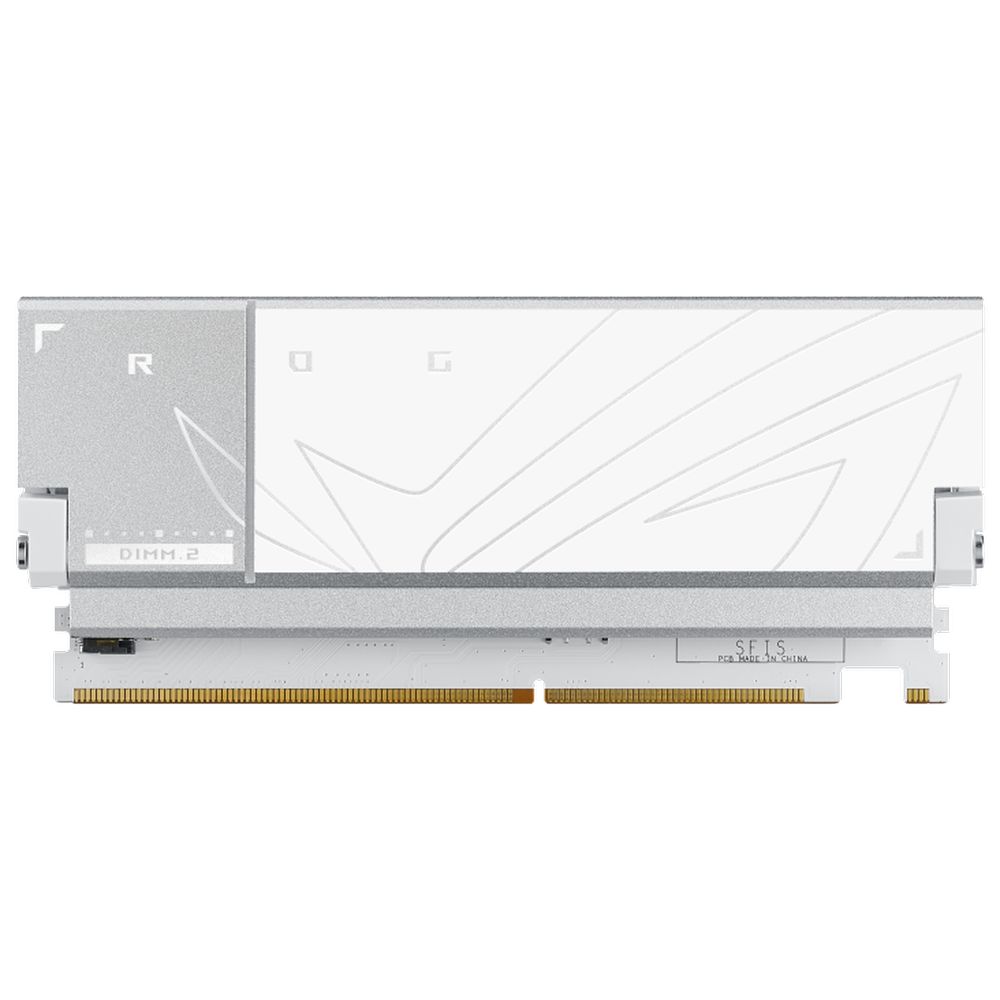

 DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

 DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)

 2 x SATA 6Gb/s ports

 ASMedia ASM1162 Controller

 M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

 DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

 DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)

 2 x SATA 6Gb/s ports

 有線LAN

 2 x Realtek 10Gb Ethernet

 ASUS LANGuard

 無線LAN

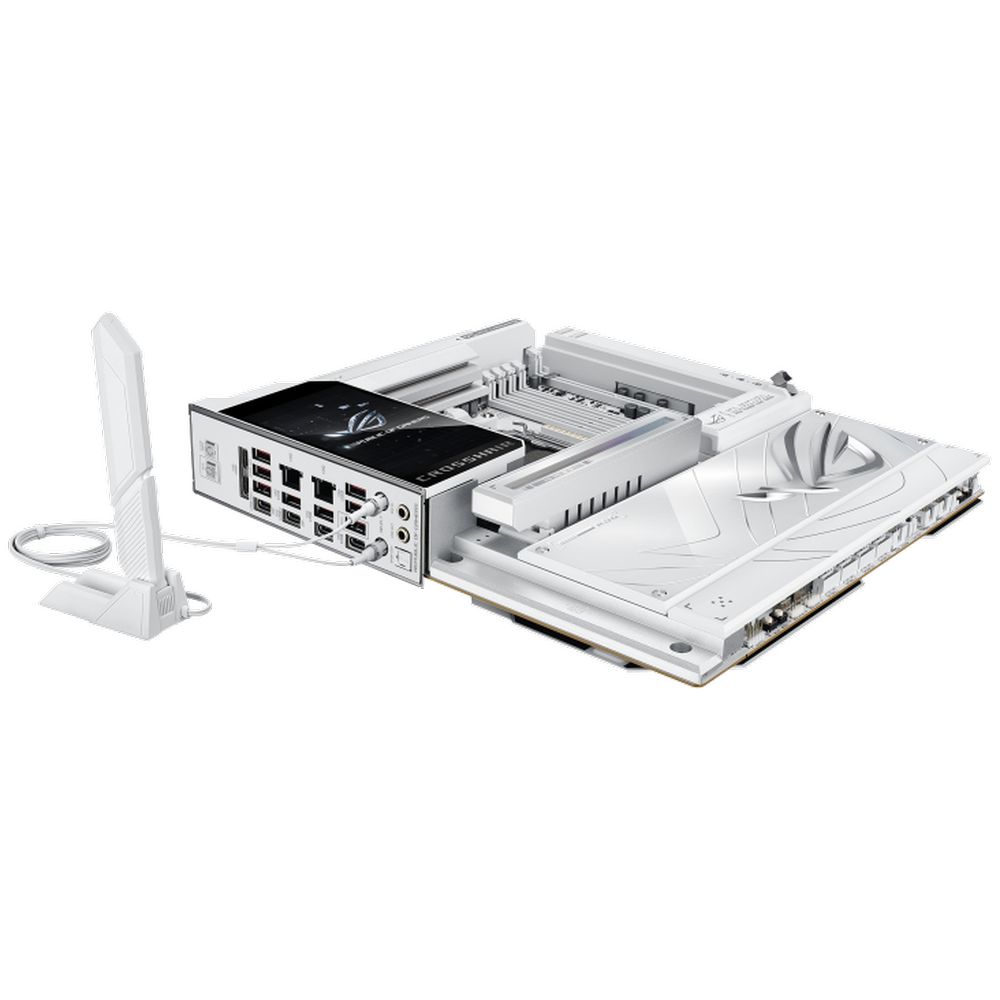

 Wi-Fi 7 (MediaTek MT7927)

 2x2 Wi-Fi 7* (802.11be)

 Supports 2.4/5/6GHz frequency band**

 Supports Wi-Fi 7 320MHz bandwidth


 *Wi-Fi features may vary depending on the operating system.

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

 ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

 Bluetooth

 Bluetooth® v5.4 (support LE Audio)

 * The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

 オーディオ

 ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

 映像出力

 2 x USB4® (40Gbps) ports support USB Type-C® display outputs**

 * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

 ** Supports max. 4K@60Hz as specified in DisplayPort 1.4a

 *** The display function of the Type-C® port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual.

 USB

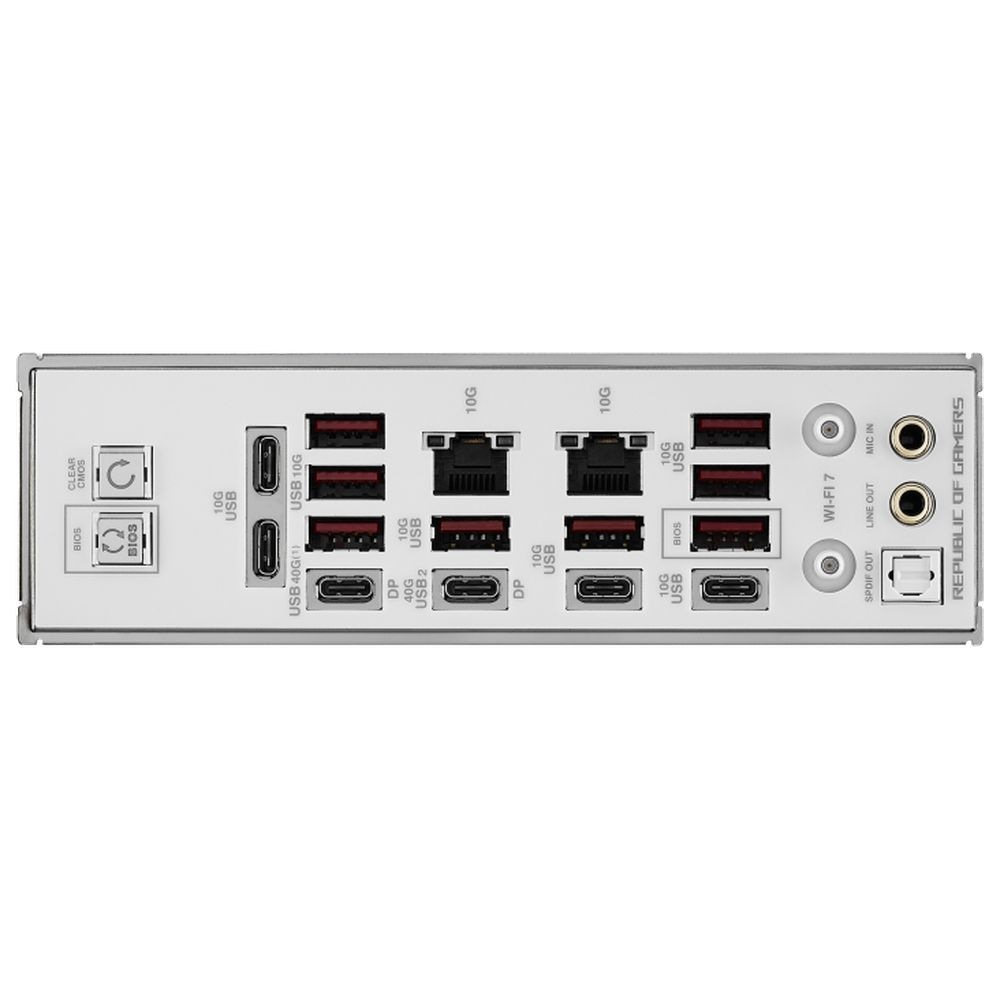

Rear USB (Total 10 ports)
 2 x USB4® (40Gbps) ports (2 x USB Type-C®)

 12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C®)
 Front USB (Total 10 ports)
 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*

 1 x USB 20Gbps connector (supports USB Type-C®)

 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

 3 x USB 2.0 headers support 6 additional USB 2.0 ports

 USB Type-C® power delivery output: max. 5V/3A

 *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

 対応OS

 Windows 11

 保証

 1年間
 国内正規代理店取扱い品
 ※オーバークロック行為に伴う故障等は保証対象外となります。ご注意下さい。
