Aqua Computer製 G1/4 ネジ付き温度センサー 2ピン

ロータリー式の分岐コネクタに取り付け済み

プラグ型センサーは空きのメスコネクタ側に付け替えも可能

ケーブル長: 70cm

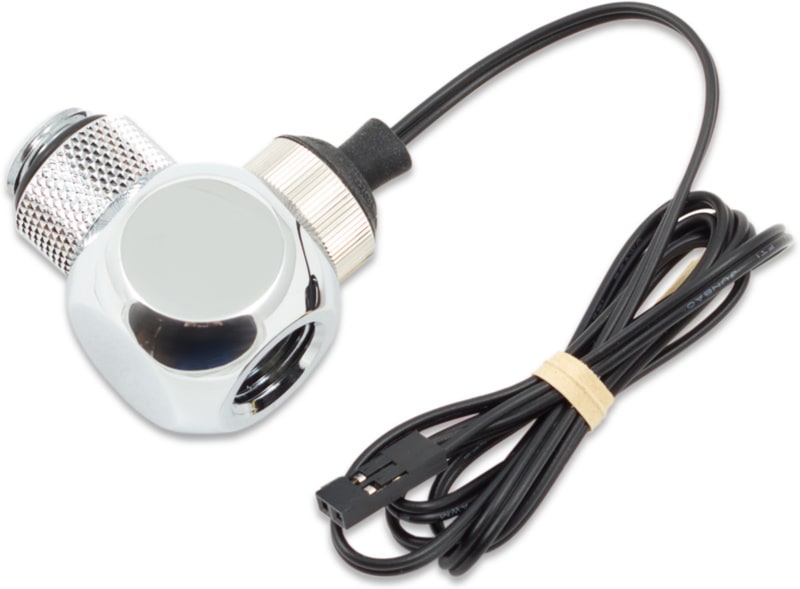

The actual sensor is installed in a slim and light-weight stainless steel sleeve, resulting in very fast response to temperature change. The stainless steel sleeve is installed into a nickel plated metal body, a silicone duct protects the connecting cable. Cable lenght approx. 70 cm, female connector.

This temperature sensor is installed into a T connector, resulting in a vacant internal thread and a rotary external thread for installation into the coolant loop. In default configuration, the coolant flows through the connector in a straight line. Alternatively, the temperature sensor can be installed into the vacant internal thread of the connector, thereby creating an elbow connector.

Technical details:
Thread: G1/4 internal/external thread

Thread length/depth: 5 mm

Temperature sensor materials: Nickel plated brass, stainless steel, silicone

T connector material: brass silver coated

Cable lenght: ca. 70 cm

Please check if the depth of the internal thread is compatible with your components!
